WJS UK engineers came to the rescue in manufacturing 4 new exhaust flanges for a classic Honda road racing bike.
The Honda VFR750R, frame designation 'RC30', was a fully faired solo seat only racing motorcycle created for homologation purposes for the World Superbike Championship by Honda Racing Corporation (HRC); only 3000 were ever made, making parts difficult and sometimes impossible to obtain
An original item was scanned into IGEMS Cad/Cam software and reverse engineered. From there the drawing was dimensioned and nested for the manufacture of the 4 parts from 6mm titanium plate, taking less than 10 minutes for all 4.

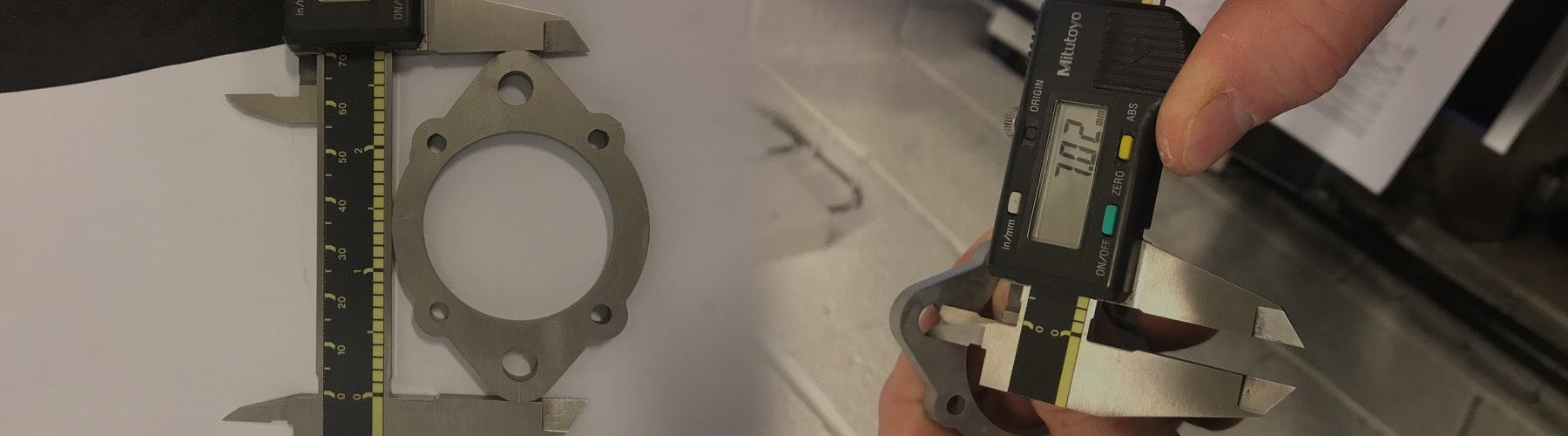

The owner of this exotic machine had originally asked for a machining / finishing allowance to be added in order to recreate the exact tolerances and was amazed that the Water Jet Sweden model NCT could produce the profile and details to within 0.02mm of the nominal sizes.
The Water Jet Sweden NCT-model is a multi-purpose water jet machine designed for in-house production, part manufacturing, design workshops, engineering workshops and prototype workshops, cutting any kind of material of various size and shape. You get all the basic functions you need and with the NCT-model you are able to cut virtually any material with the same cutting tool, up to 200 mm thick: metal cutting, composite cutting, glass cutting, stone cutting, tile cutting, rubber cutting, plastic cutting, wood cutting, you name it.
“These parts are NLA (No Longer Available) from Honda HRC (Honda Racing Corporation) who hand-built each and every of the 3000 RC30’s produced and it had stopped my restoration project dead in it’s tracks. I was recommended to consider waterjet cutting process by a colleague and after many contractors declined the job, the team at WJS UK kindly offered to engage in this project. Their apprentice engineer was tasked with the project as part of his development.
The Water Jet Sweden NCT-model is a multi-purpose water jet machine designed for in-house production, part manufacturing, design workshops, engineering workshops and prototype workshops, cutting any kind of material of various size and shape. You get all the basic functions you need and with the NCT-model you are able to cut virtually any material with the same cutting tool, up to 200 mm thick: metal cutting, composite cutting, glass cutting, stone cutting, tile cutting, rubber cutting, plastic cutting, wood cutting, you name it.
Operated with a real CNC control system from Fanuc and powered with original intensifier pumps from BFT and KMT, leading European and American high pressure pump manufacturers this water jet cutting machine includes a unique extended five-year performance warranty. Water Jet Sweden also guarantees that it will keep the same tolerance requirements after five years, or 10,000 hours, as when the machine was first delivered.
For more information or to get a quote on any waterjet cutter machine just call us on 01937 845499 or send us an email to info@wjsuk.com
