Multi Head Waterjet Cutting Machines
Multi Head Machine Models: Premium, Grand
Ideal for applications where the user needs the flexibility to cut a wide range of disparate parts from the same parent material.
With robust heavy-duty design the Premium and Grand water jet cutters meet tough performance demands. Grand is particularly suited to large and odd size materials with the largest table sizes.
Both the Premium and Grand machines offer a huge range of optional settings to meet a wide range of 2D and 3D cutting requirements. Popular in specialised job shops and as workstations in industry production lines these water jet cutting machines are tailored to fit the customer process requirements and easily adopted for multi-job processing and unmanned operations.
Premium

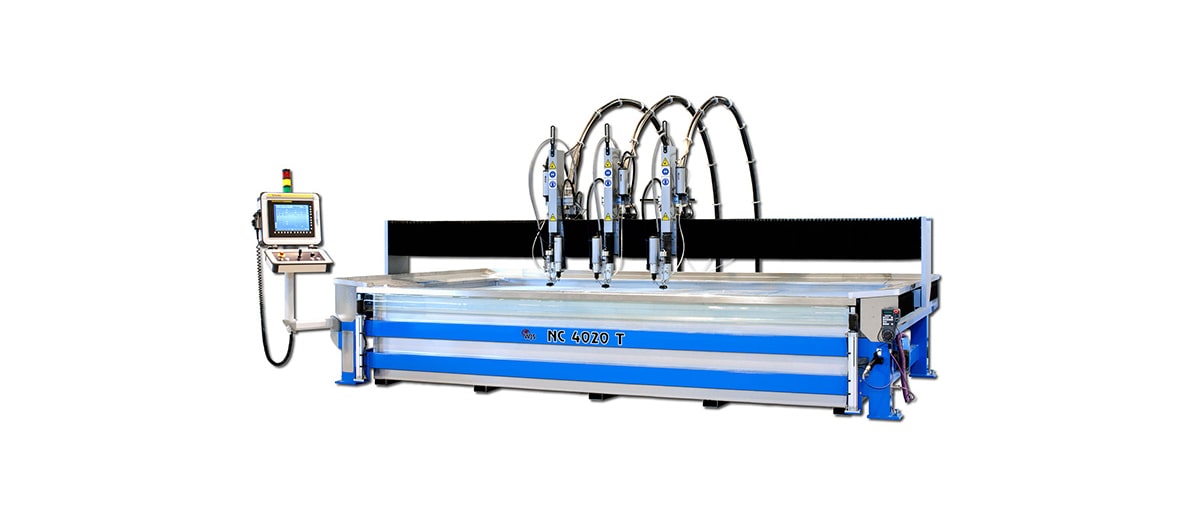

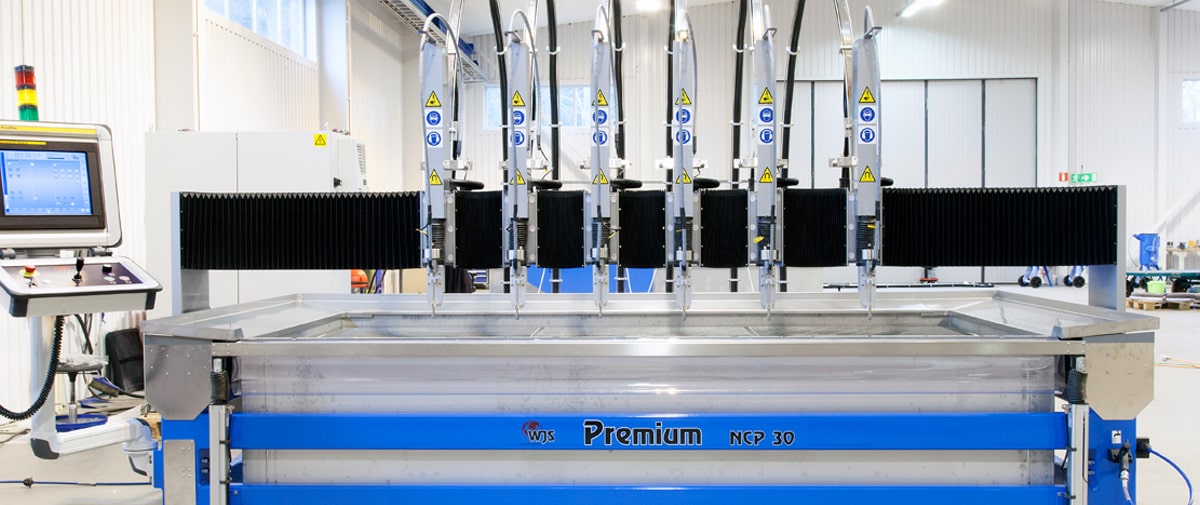

Versatile, top of the line water jet cutters, in all sizes from 2D to advanced five axis cutting in 3D

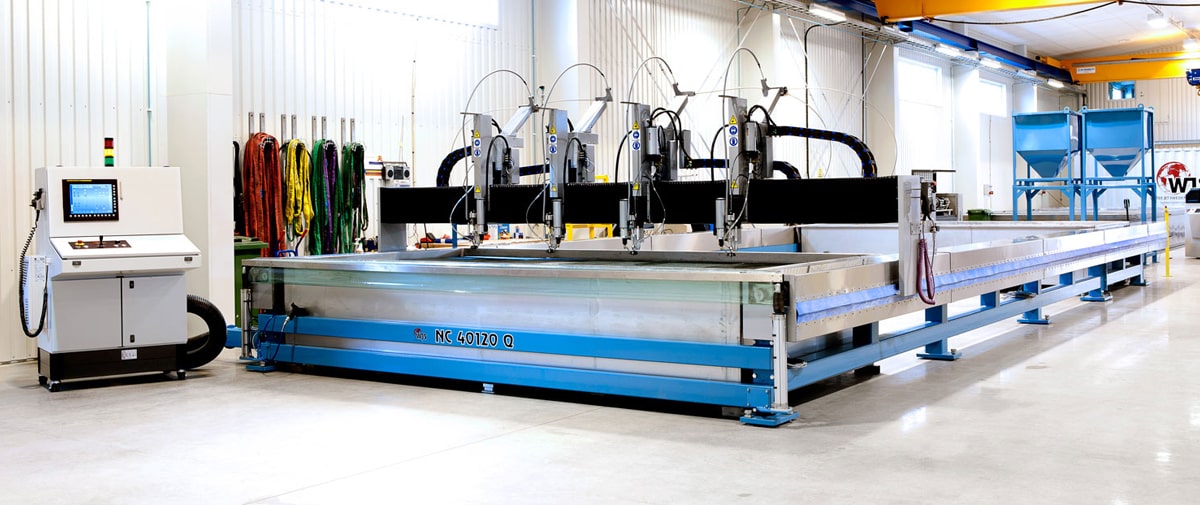

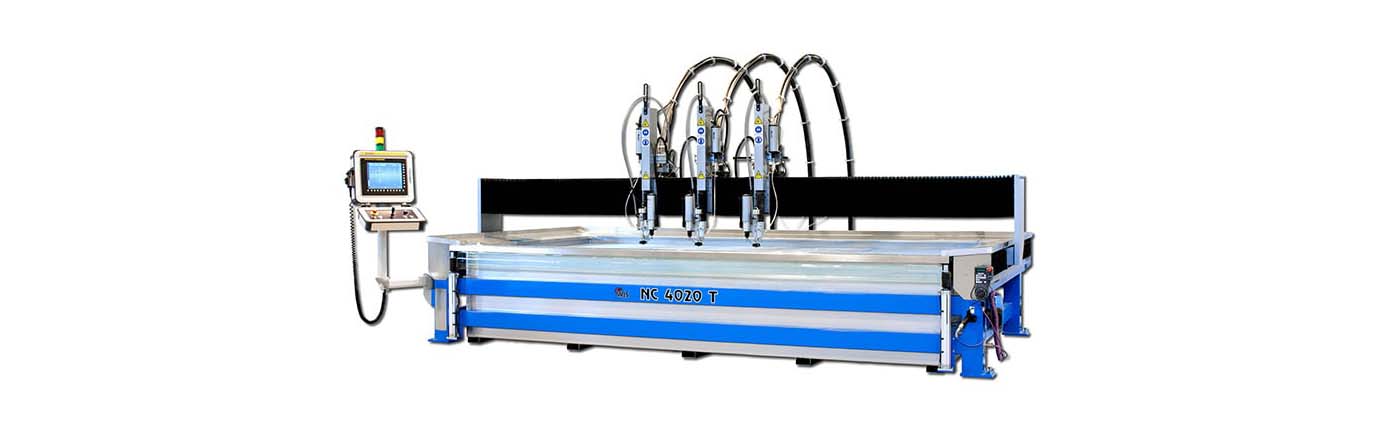

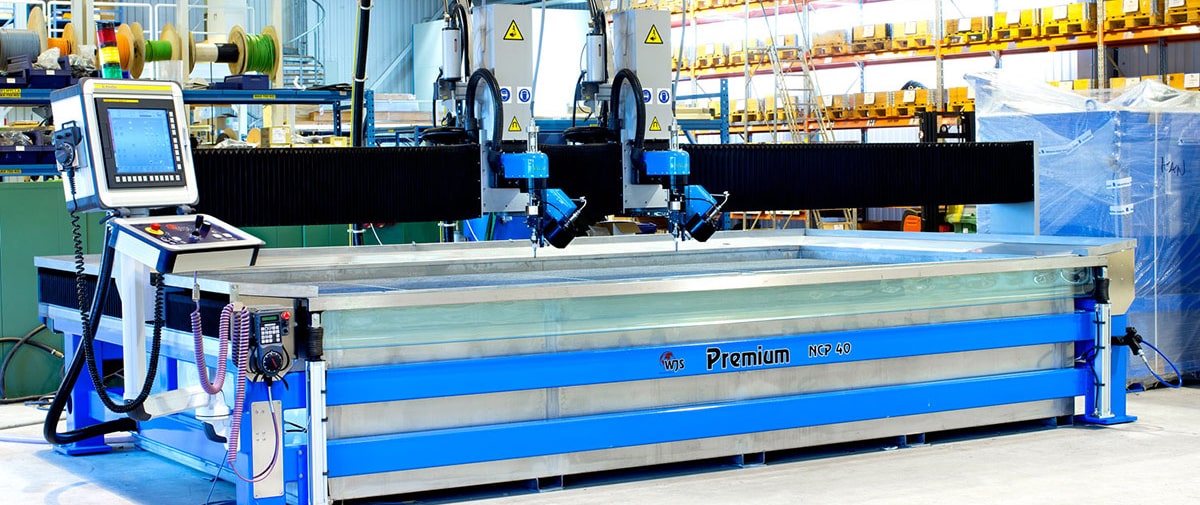

The Premium machine is an versatile and efficient machine tool that can be found in almost any professional job shop or industry. With a huge range of optional settings it can be designed to meet a wide range of cutting requirements, both 2D and 3D cutting. Based on Water Jet Sweden top class mechanical design it is a machine model for experts and tough performance demands.
Key Benefits
Multi Head CNC Controlled

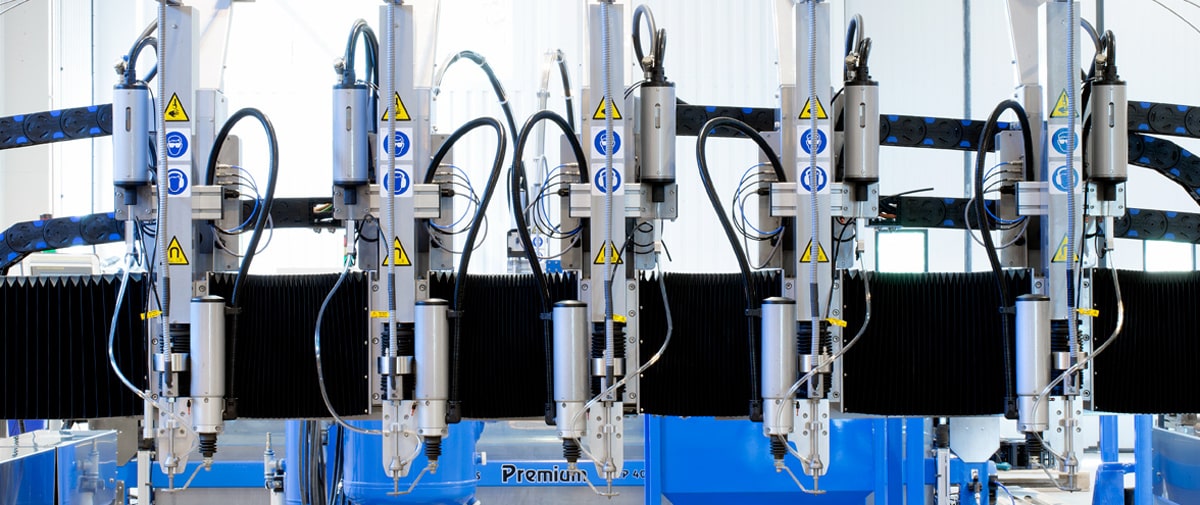

Cut cost by more efficient material usage and minimise production time with automatic CNC repositioning of multiple cutting heads in CNC mode. The cutting program can utilise some heads to cut a pair of large parts, then use the other heads to process parts simultaneously out of the same material sheet. This is possible with the use of Fanuc linear drives on each cutting carriage, with positional guidance from high-resolution Heidenhain linear scales.Beveljet®60

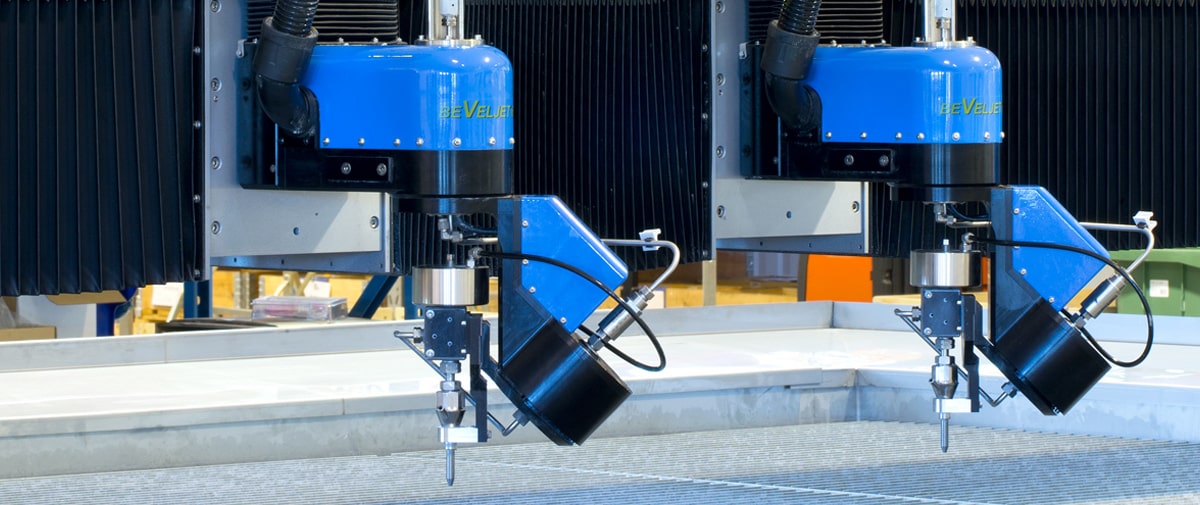

Real five axis interpolation manage bevel and free form 3D cutting. A fully vector based calculation in Fanuc for TCP improve cutting quality. Combine with one or several 2D cutting heads.Turning Device

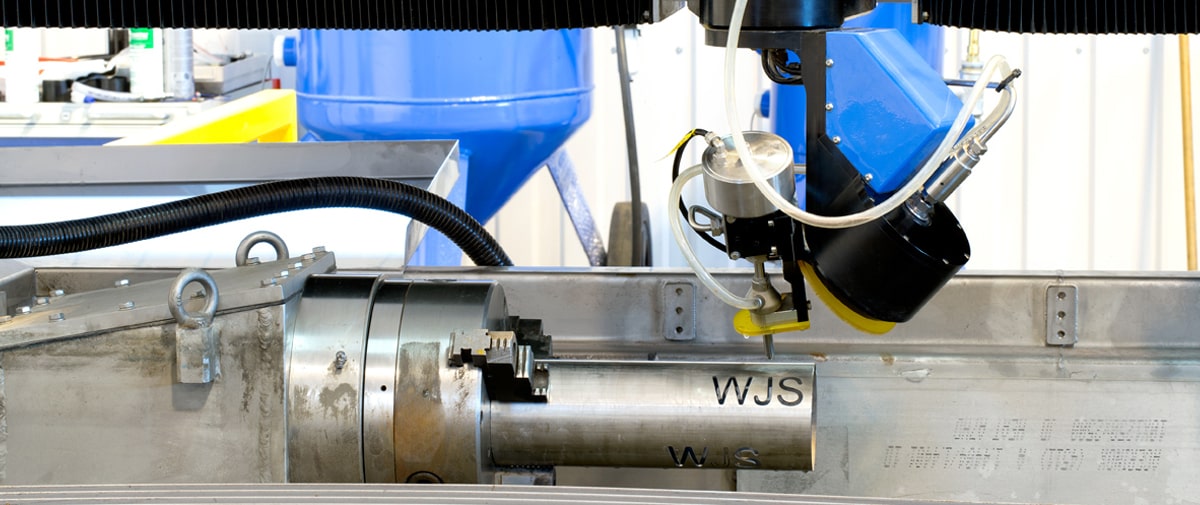

Tube cutting function fully integrated into the control system. Combine with Beveljet 60 or retrofit existing machine.Table Grids

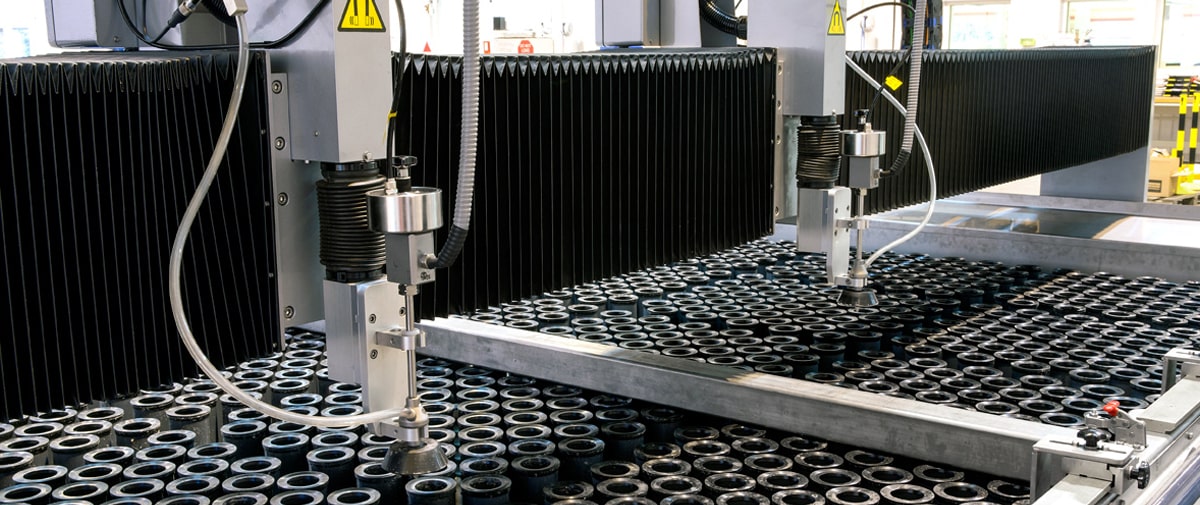

To emphasise the versatility there are a number of table grid options depending on cutting requirements.
Premium Datasheet Download
Grand

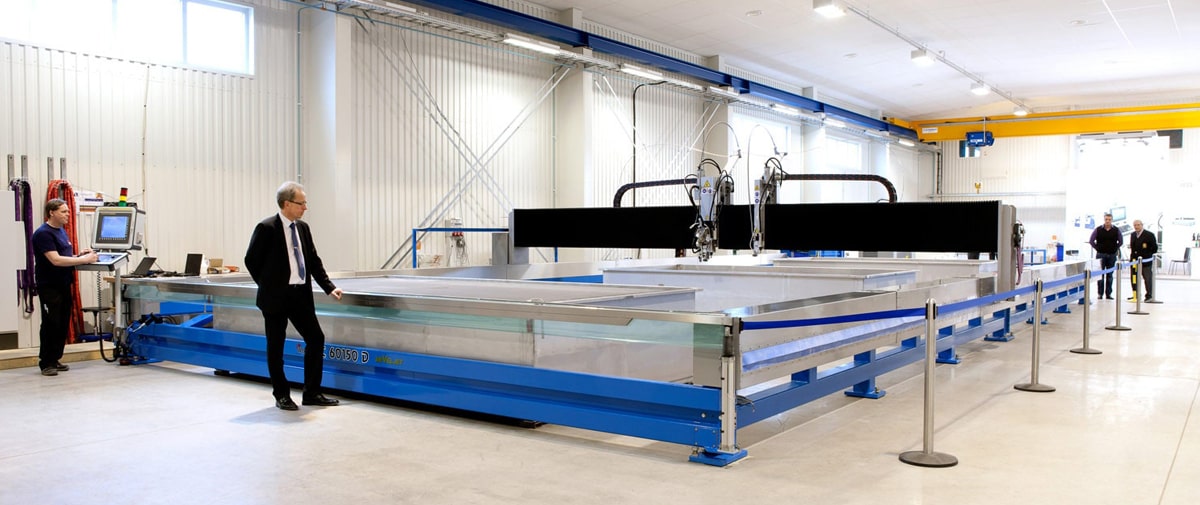

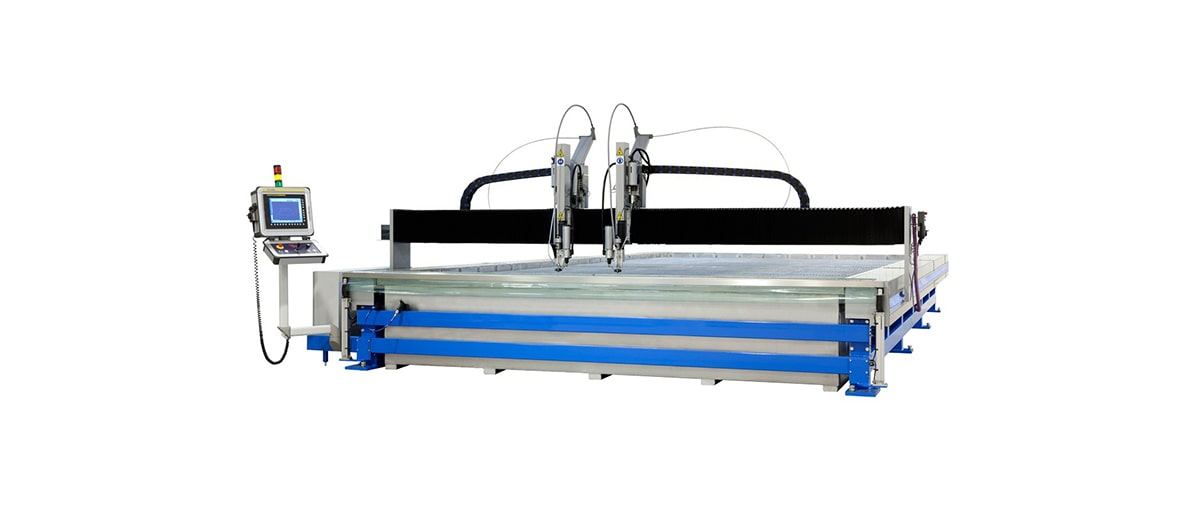

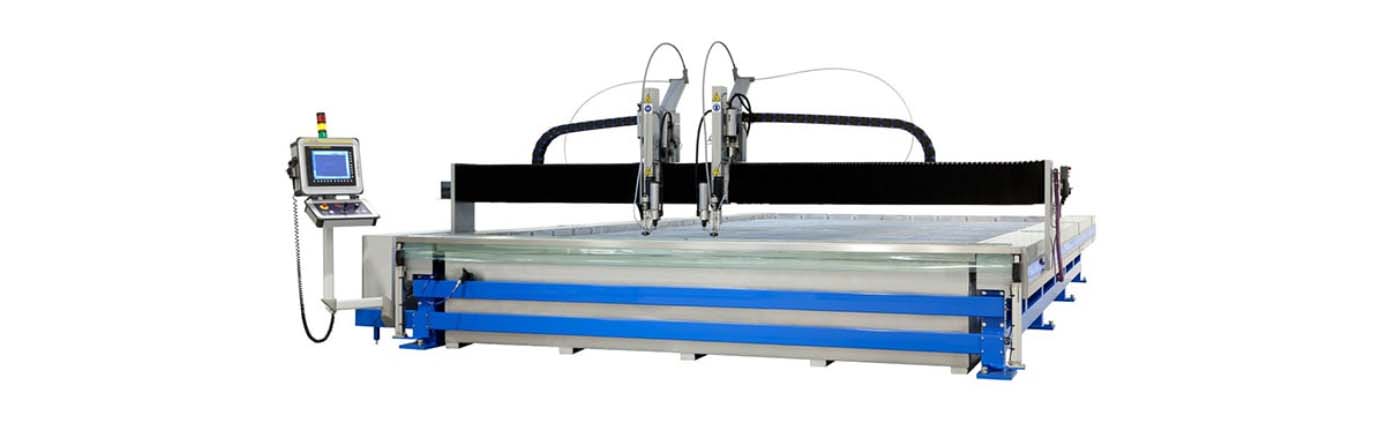

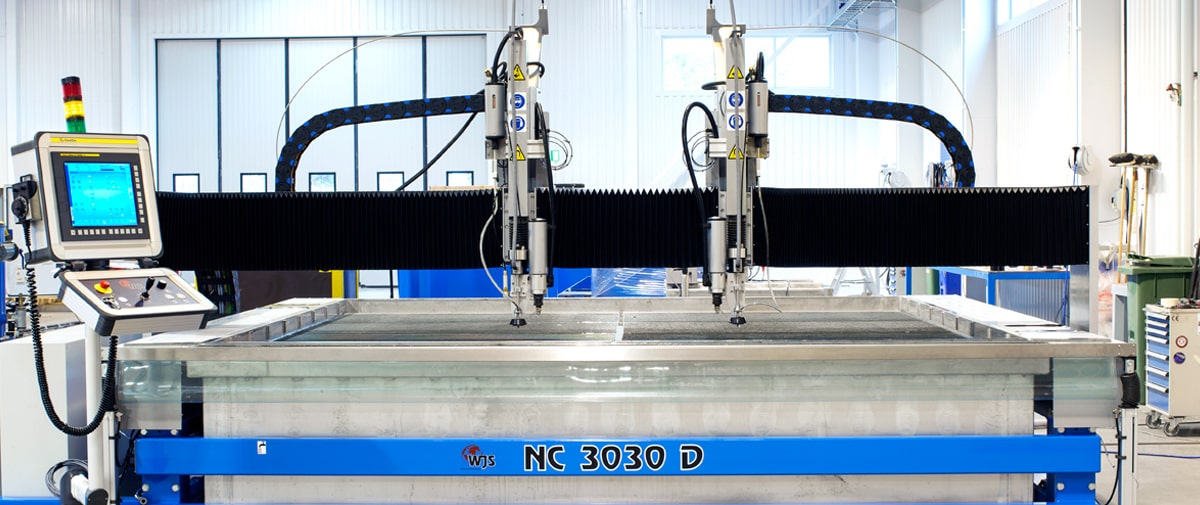

Robust, heavy duty waterjet cutting system, for all shapes, and large or odd sizes
Extremely versatile with a wide range of design options. Grand offer the largest tables sizes with a robust heavy-duty design to manage large and odd size materials. Thanks to our worldwide patented guide system all machines have the same tolerance, independent of size. You get the same high performance from a 12 metre machine as from a 2 metre machine.
The Grand machines popular in specialised job shops and as workstation in industry production lines. Each machine is tailored to fit the customer process requirements, easily adopted for multi-job processing and unmanned operations.
Key Benefits:
Protective Design Features
Side mounted motion system enable safe handling of large and heavy materials and heavy duty stainless steel covers protect from impact.Efficient Job Handling
Access from three sides enable easy loading and unloading and Zone Divided Worktable option make it possible to exchange jobs while processing.Heavy Duty Production Options
To avoid backlash and support thick and heavy materials there are options like Quick Water Level Adjustment and different table grids.Beveljet®60
Real five axis interpolation to manage bevel and free form 3D cutting. A fully vector based calculation in Fanuc for TCP improve cutting quality. Combine with one or several 2D cutting heads.
Grand Datasheet Download
Multi Head Machine Videos
Specifications
PREMIUM
TECHNICAL DATA
Construction:
Gantry
Frame:
Welded
Cutting Table/Tank:
Stainless Steel
Covers:
Stainless Steel
Motion System:
Linear Drive (X) and Ballscrew (Y)
Control Unit:
Panel One HMI
CNC Control System:
FANUC
Multiple Cutting Tools:
Independent variable 2-4 tools
Process:
PWJ, AWJ and FAWJ compatible
3D Cutting:
WJS Beveljet®60 system
Pressure Technology:
4000 bar and 6000 bar
Working Area:
3×1.5 m, 3×2 m and 4×2 m
MACHINE PERFORMANCE
Maximum Z-movement:
250 mm
Maximum Table load:
800-3000 kg/m2
Positioning accuracy:
± 0.050 mm/m
Repetition accuracy:
± 0.025 mm
BEVELJET®60 CUTTING TOOL PERFORMANCE
Cutting Performance:
0-60°
A-axis movement:
± 90°
C-axis movement:
± 400°
Transmission accuracy A & C axis:
< 1 arcmin
Repetition accuracy A & C axis:
< ± 0.1 arcmin
FEATURES
• Handy Operator Panel
• Height sensor
• Collision Sensor
• Zero Point Indicator
• Drilling Unit
• Quick Water Level Adjustment
• Jet Pen Marker System
• Work Piece Indicator System (probe function)
• Abrasive Delivery System with Abrasive Tower
• Abrasive Level and Blockage Control
• Online Abrasive Feeding
• HMI Controlled Electronic Abrasive Feeder
• Abrasive Removal System with Tip Container and Sediment Tank
• Remote Control of HP Pump
• HMI Pressure Monitoring of HP Pump
• HMI Proportional Valve Pressure Control
• Unmanned Operation Functions
GRAND
TECHNICAL DATA
Construction:
Gantry
Frame:
Heavy Duty
Cutting Table/Tank:
Stainless Steel
Covers:
Stainless Steel
Motion System:
Linear Drive (X) and Ballscrew (Y)
Control Unit:
Panel One HMI
CNC Control System:
FANUC
Multiple Cutting Tools:
Independent variable 2-4 tools
Process:
PWJ and AWJ
3D Cutting:
WJS Beveljet®60 system
Pressure Technology:
4000 bar and 6000 bar
Working Area:
2.5-4 m wide and 3-12 m long as standard
MACHINE PERFORMANCE
Maximum Z-movement:
250 mm
Maximum Table load:
800-3000 kg/m2
Positioning accuracy:
± 0.050 mm/m
Repetition accuracy:
± 0.025 mm
BEVELJET®60 CUTTING TOOL PERFORMANCE
Cutting Performance:
0-60°
A-axis movement:
± 90°
C-axis movement:
± 400°
Transmission accuracy A & C axis:
< 1 arcmin
Repetition accuracy A & C axis:
< ± 0.1 arcmin
FEATURES
• Handy Operator Panel
• Collision Sensor
• Drilling Unit
• Height sensor
• Zero Point Indicator
• Jet Pen Marker System
• Work Piece Indicator System (probe function)
• Quick Water Level Adjustment
• Zone Divided Work Table
• Abrasive Delivery System with Abrasive Tower
• Abrasive Level and Blockage Control
• HMI Controlled Electronic Abrasive Feeder
• Abrasive Removal System with Tip Container and Sediment Tank
• HMI Remote Control of HP Pump
• HMI Pressure Monitoring of HP Pump
• HMI Proportional Valve Pressure Control
• Unmanned Operation Functions
